OwnerDave MacGurn
LocationBend, Oregon United States map
Email email image

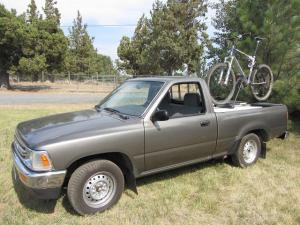

Vehicle1989 Toyota Pickup, shortbed
MotorNetgain Warp9 Series Wound DC
Drivetrain5 speed manual, rear wheel drive
ControllerEvnetics Soliton Jr.
Batteries38 Realforce, 3.20 Volt, Lithium Iron Phosphate
200 amp-hour with MiniBMS battery management
System Voltage120 Volts
ChargerManzanita Micro PFC-30
Heater1500W ceramic. Installed a mass air sensor to insure air movement in heater box before heater activation in addition to a high temperature limit switch.
DC/DC Converter Power Max PM3-55
InstrumentationEV Display by CleanPowerAuto
Top Speed60 MPH (96 KPH)
Great on the flats around town. Slow on sustained hills.
AccelerationI can easily stay with city traffic.
Range100 Miles (160 Kilometers)
I have gone up to 75 miles between charges without a major sag in the pack voltage.
EV Miles
Start:146,853 Miles (236,286 Kilometers)
Current:148,096 Miles (238,286 Kilometers)
Total:1,243 Miles (1,999 Kilometers)

    As of 8/6/2013
Seating Capacity3 on a cozy bench seat.
Curb Weight3,180 Pounds (1,445 Kilograms)
The initial curb weight was 2740 and the converted weight is 3180.
Tires185/70R14
Conversion TimeLess than 2 years of sporadic work
Additional FeaturesThe insulated battery box has thermostatically controlled heat trace in its floor for cold weather charging.

Used the MES-DEA electric vacuum pump for the power brakes.
