OwnerMTo
Owner's Other EVs1996 Chevrolet S-10 King-Cab
1997 Solectria Force
LocationMontreal, Quebec Canada map
Email email image

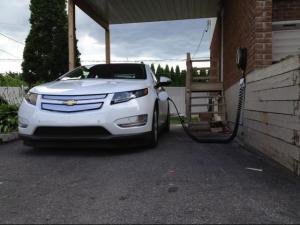

Vehicle2012 Chevrolet Volt
Motor OEM 3-Phase AC
One 111 kW (149 hp): One 55 kW (74 hp) permanent magnet motor/generators
Controller OEM
Custom made by Chevrolet
Batteries288 LG Chems, 3.75 Volt, Lithium-Ion
Groups of three cells connect in parallel, and 96 of these groups are in series so that the 288 cells produce 360V with a capacity of 16 kWhr. For safety reasons (Lithium Cobalt/Manganese is very unsafe by nature) and also to prolong battery life, the battery never fully charges or discharges, so it uses only the middle 10 kWhr of battery energy.

Why they didn't use Lithium Iron Phosphate ?
System Voltage360 Volts
Charger Chevrolet OEM
DC/DC Converter Chevrolet OEM
InstrumentationOEM
Top Speed101 MPH (162 KPH)
Range50 Miles (80 Kilometers)
Officially 35 miles, real life 50, maximum done: 57
Watt Hours/Mile250 Wh/Mile
From 180 to 550
EV Miles
Current:13,808 Miles (22,217 Kilometers)
Seating Capacity4
Curb Weight3,781 Pounds (1,718 Kilograms)
TiresLRR
