OwnerAdrian Mettz
Owner's Other EV1988 Specialized Hard Rock
LocationSebastopol, California United States map
Email email image
Vehicle2005 Trek Wally world 16''

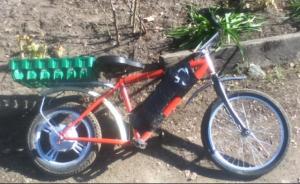

I gutted a Zappy 3 wheel scooter, used the hub wheel with
drum
brake and the giant seat......stretched and bored out the
drop outs
on the Trek Mtb.....added 20" tag along trailer wheel for
front....
MotorZappy Permanent Magnet DC
Typical 12.5" (16" wheel) scooter hub motor mag wheel
DrivetrainZappy 3 12.5" hub motor/rim......250w brushed direct
drive.....
ControllerZAP
36v 19-21peak amp, 250watt, brushed, sensorless.....
Batteriesother Ezee, eMoto, e-tour slide in Phi Lion, 36.00 Volt, Lithium-Ion
Slide in, rectangular pouch 10s phi lion with BMS....
System Voltage36 Volts
Charger
Sans 36v li ion charger...
Top Speed18 MPH (28 KPH)
Torquey cuz it's small diameter....the original zappy pro 3 wheeler couldn't get me up my dirt driveway(I'm 270lbs.) even with my A123
battery(cellman 39v)........
Now in a 2 wheel scooter configuration, it does well.....
AccelerationIt's like an old school golf cart.....crawls at walking speed well......
Range8 Miles (12 Kilometers)
Estimate.....I keep it offroad.....
Seating Capacity1 adult
TiresQind 16x2.5 rear.....20 x 1.95 front
Conversion Cost300 for battery.....bike and zappy free...
Additional FeaturesI sprung the seat and added cruiser fenders, pletcher rear rack with bent stays......full twist throttle.....bull moose chrome handlebars......"peggles" instead of crankset, black duct tape and zip ties!
