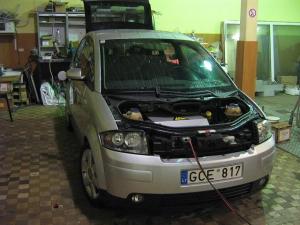

Electric Audi A2Electric Audi A2Amperbox-75 motor controllerMotor and controllerfront battery boxfront battery boxcluch
OwnerMarius Gerve
LocationKaunas, Kaunas County Lithuania map
Web/EmailWebPage email image
Vehicle2002 Audi A2
Motor Converted industrial induction motor 132 mm size 3-Phase AC
Max motor power 150kW, max torque 200Nm
DrivetrainCluch, mechanical gearbox.
Controller Amperbox-75
3-phase 75kW 144V controller, water
cooled, buit-in contactor. Made by
jonelis.eu (Lithuania)

Output is up to 750A (rms).
BatteriesThunder Sky 100Ah, 144.00 Volt, Lithium Iron Phosphate
45 cells with BMS made by Jonelis
System Voltage144 Volts
Charger Meanwell 3x48V 3x600W and Jonelis qiuck charger 12
Standard power supply units 3 in series
made by
MeanWell, model HRPG-600-48.

Outboard fast charger 12kW.
Heaterelectric water heater, circular pump.
DC/DC Converter MeanWell 12V 53A power supply
Standard power supply unit made by
MeanWell, model HRPG-600-12
Instrumentationoriginal dash panel, any computer with
Windows or Android and BlueTooth(for
example cell phone Samsung Ace).
Top Speed88 MPH (141 KPH)
Top speed is real, and easy reacheable.
It's possible to go faster, but it's
necessary to wait, because acceleration
above 140km/h is weak.
Accelerationto 62 mph in 11sec (real!), to 30 mph in 4
sec.
Range60 Miles (96 Kilometers)
if speed is 50km/h, range is 120km.
Watt Hours/Mile140Wh/km
EV Miles
Start:118,300 Miles (190,344 Kilometers)
Current:122,350 Miles (196,861 Kilometers)
Total:4,050 Miles (6,516 Kilometers)
Seating Capacity4 adults
Curb Weight2,150 Pounds (977 Kilograms)
1050kg with batteries, full weihgt
Tires185/50/R16
Conversion Time2 month
Conversion Cost13000 EUR
Additional Featuresoriginal starter is not dimounted and is used as an
emergency motor, powered by 12volt battery. It's possible to
drive at 10km/h speed for 1km.
more info at WebPage /> v=YFikqPw5ss4&feature=youtu.be

wisit www.jonelis.eu. Site is in Lithuanian language, use
google translator. There are many photos.
