OwnerRoy Prince
Owner's Other EVseCortina v2
Electra Townie 21D
LocationOxnard, California United States map
Web/EmailWebPage email image
Vehicle eCortina v3
MotorTurnigy 8085 Permanent Magnet DC
Outrunner Turnigy 8085 stock wind.
Soon to be rewound with 14g magnet wire with 10 turns.

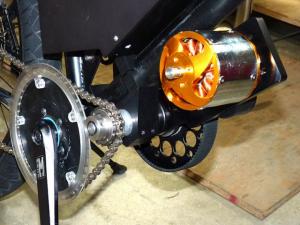

DrivetrainThe drive systems are derived from mostly bicycle related parts and concepts. There are two BMX style freewheels to allow pedaling without driving the motor and motoring without forcing the pedals to rotate. The BMX chains employed here are strong and up to the task of propelling this bike reliably.

UPDATE: The drive systems are always being changed. Check out the website to see my latest version.
Controller eBike controllers
Various 30 to 45 amp controllers are being tested.
Batteries6 Turnigy 24v 5ah, 24.00 Volt, Lithium-Polymer
25c
System Voltage48 Volts
Top Speed40 MPH (64 KPH)
AccelerationExcellent! Just try to keep that front wheel down!
Range25 Miles (40 Kilometers)
With pedaling.
Watt Hours/Mile30 Wh/Mile
Curb Weight65 Pounds (29 Kilograms)
Tires24" Maxxix Hookworm
