OwnerHeiko Fleck
Owner's Other EVs2000 Yamaha R1 electric
1967 Volkswagen Beetle
2000 Audi A2
1970 Fiat 500
LocationPfarrkirchen, Rottal-Inn Germany map
Web/EmailWebPage email image

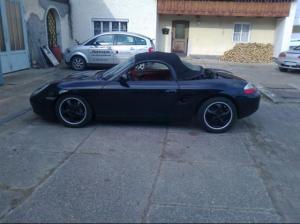

Vehicle1997 Porsche Boxster
elektro boxster
Motor 3-Phase AC
Made special for me. 44kw current peak 90kw 260nm 72 Kg aircooled.
if somebody want one the price is 3500Euro
Drivetrainorg. gearbox
ControllerZapi ac5e
Batteries40 CALB/Skyenergy 180AH, 0.00 Volt,
System Voltage120 Volts
ChargerElcon
3kw
Heaterdishwasher self made. heats in winter in car on t shirt temp.
with only 11 amps.
DC/DC Converter
new german firm 500watt
water seal
Instrumentationorg. and victron
Top Speed100 MPH (160 KPH)
runs around 160-170kmh
but need than 500-600amp
Accelerationbetter than on video.
when I made that controller was not porgrammed perfect on that motor!
Range100 Miles (160 Kilometers)
perhaps 200km if you go slow but is hard to go slow!!!
EV Miles
Start:181,000 Miles (291,229 Kilometers)
Current:183,000 Miles (294,447 Kilometers)
Total:2,000 Miles (3,218 Kilometers)

    As of 3/17/2012
Seating Capacity2 adults
Curb Weight0
1340kg so only 15 kg more than orginal.
perfekt..
Tires255 in back 225 in front.
i think they need so much amps. but looks very good..
Conversion Timeone month
Conversion Costparts are around 20000euro
car was 5100euro with motor blow.
all parts I have on stock if sombody want one.
here is the first video Ii made in night with 70% rest charge from batt. and not pogramed controller to motor. now the boxster goes much better.
is only an video from first day.
other video will come soon.
