OwnerHeiko Fleck
Owner's Other EVs1967 Volkswagen Beetle
2000 Audi A2
1997 Porsche Boxter
1970 Fiat 500
LocationPfarrkirchen, Rottal-Inn Germany map
Web/EmailWebPage email image

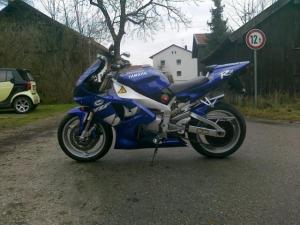

Vehicle2000 Yamaha r1
after many diesel bikes I converted after my first ktm electric an r1
MotorLEMCO 96v Permanent Magnet DC
Drivetrainchain
ControllerKelly kdhb
600 amps peek with reku
Batteries128, 0.00 Volt, Lithium-Ion
128 cells with 10 ah and overcharging management
System Voltage96 Volts
Charger 2 pieces 48 volt with 15 amp each
Heaterno
DC/DC Converter
25 amp dc dc converter
Instrumentationdigital from kyosho
Top Speed100 MPH (160 KPH)
with 100 mph engine needs much amps so I geared down to 80 mph.
its enough and makes a lot of fun
Accelerationvery good
Range50 Miles (80 Kilometers)
I tested first now with 0 degrees outside temp by always full acceleration and top speed. Range was 31 miles. If you go normal and its warmer than sure bike will have 50 miles range. if you economically perhaps more.
but the bike is for fun not for going like an scooter!!
EV Miles
Current:300 Miles (482 Kilometers)

    As of 5/6/2010
Seating Capacity2 adults
Curb Weight352 Pounds (160 Kilograms)
is much lighter than original 30kg!!!
Tires180 in back 120 in front
Conversion Time120 hours
Conversion Cost9000 euro
Additional Featuresbrakes and charge over braking switch and starter switch.
you don't need much brake pads!
