OwnerJason Green
LocationOntario Canada map
Vehicle GoKart

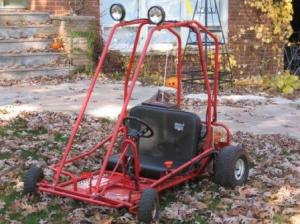

48 volt DC Electric Go Kart
MotorD&D Motor Systems, Inc. D&D 170-512-0005 Shunt Wound DC
D&D 512:5 is a Brush-Type, Shunt motor Capable of 2.2 KW continuous and 15 KW for 1 minute.

24 - 72 VDC
7/8" single-shaft base/face-mounted
6.7" Dia x 8.5" Long
Actual Weight 38 lbs

CONTINUOUS RATING: @ 48 Volts

3100 rpm
2.8 ft lbs torque
45 amps armature
9.5 amps field
2.3 HP

PEAK RATING:

4500 rpm
14.3 ft lbs torque
350 amps armature
20 amps field
8.5HP
DrivetrainOne wheel driven in rear
ControllerAlltrax DCX300
0-5k Throttle
Batteries4, 0.00 Volt, Lead-Acid, AGM
Four 12 volt 55 ah batteries in series
System Voltage48 Volts
Charger
On board battery charger. 4 bank, 10 amps per bank.
DC/DC Converter
DC/DC converter for the lights
InstrumentationBattery gauge
Top Speed30 KM/hr top speed with 230 lb adult. Throttle travel limited to about 2/3rd for a top speed of 20 KM/hr
RangeUnknown, but the kart has got a lot of use by the children in the neighborhood. I would estimate the running time at 1.5 hour to 2.0 hours at 2/3rd throttle
Seating Capacity2 adults
Curb Weight0
all the weight is in the motor and batteries.
Tires4
