Gearbox adapterAgni in placeBattery and motor support.Battery and motor support.Test drive 1Test drive 2
OwnerRikard Westlund
Owner's Other EVMonark 12/39
LocationStockholm, Sodermanland and Uppland Sweden map
Web/EmailWebPage email image

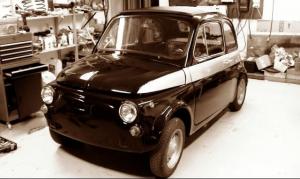

Vehicle1973 Fiat 500 R
Restoring and converting a fiat 500 R
MotorAgni Motors 95-r Permanent Magnet DC
11kg 30Kw peak.
DrivetrainAgni 95-r and kelly 72 volt controller.
ControllerKelly KDC72601
Batteries6 Winston LiFeYPO4 (12V/90Ah), 12.00 Volt, Lithium-Polymer
System Voltage72 Volts
Charger TC Charger POW72V32AT
32A
DC/DC ConverterSevcon 300W
Top Speed65 MPH (104 KPH)
Range32 Miles (51 Kilometers)
32 miles using 80% of capacity.
Seating Capacity2(4)
Luigi is on National TV in Sweden:

FFWD to 09:48
WebPage />
-----


New update on WebPage

Luigi made the NEWS!

WebPage

Hi all,

I made a small video of todays test run. The Kelly is set to 450A and torque mode. Its a rocket!

WebPage

First highway test:
WebPage
