Jim Donovan and Rich MullinRear PackFront Pack with original ZapiOpened UpBatteries under the bed.
OwnerJim Donovan
(former owner, EV has been sold)
Owner's Other EVs1993 Soleq EVcort
1992 Chevrolet S-10
1995 Solectria Force
1992 Ford Ranger XLT Extended Cab
LocationWestwood, Kansas United States map

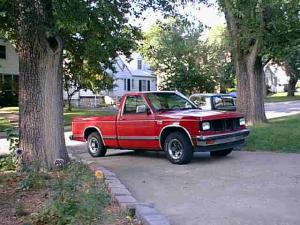

Vehicle1989 Chevrolet S-10
pickup
MotorAdvanced DC FB-4001A Series Wound DC
9" dual shaft
Drivetrainoriginal 5 speed transmission with clutch
ControllerCurtis 1231C
Batteriesother mixed brands, 6.00 Volt, Lead-Acid, Flooded
Current pack is old and should be replaced. Power totals anywhere from 96 to 108 volts but is designed for 120 volts.
ChargerBycan
110vac or 220vac input, manually controlled 25 amp 120/132/144 vdc output.
HeaterDual Ceramic Element 3.2 kw 120 VDC
DC/DC ConverterCurtis
Instrumentationa) 500 Amp ammeter
b) E-Meter
c) Tachometer
Top Speed70 MPH (112 KPH)
Seating Capacity3 adults
TiresP215/70R14 Road Huggers
Additional Featuresa) Power Brakes
b) Power Steering
c) Tilt Bed
d) Battery Heating System
e) AM/FM Cassette Stereo
This S-10 was converted by Dan Sulzer in Dubuque, Iowa.
