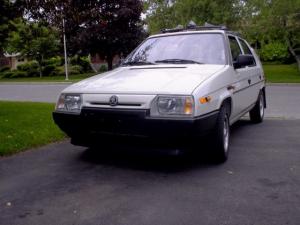

I finally get my hands on the SkodaFront batteriesDriver's side interior viewThe original remote controlled range extRear batteries cover removedGenerator remote control console
OwnerDouglas Hartley
Owner's Other EVs1980 Kawasaki KZ250G
1994 Skoda Favorit Eltra
LocationMontreal, Quebec Canada map
Email email image
Vehicle1993 Skoda Favourit
Motor SM1610-S1 Series Wound DC
8" 110 Volt, 20.1 kW, 27 HP
DrivetrainFWD., clutch and 5 speed transmission
ControllerCurtis 1221R
will try Curtis 1221R regen, original still defective
Batteries14 Crown 702L, 6.00 Volt, Lead-Acid, Flooded
System Voltage84 Volts
Charger
on board 240 VAC input, 20 Amp DC output
HeaterB5W Eberspacher hot water gas heater
DC/DC Converter F 300
InstrumentationNorvik Watt-Hour meter, tach guage shows Amps, Voltmeter
Top Speed53 MPH (85 KPH)
on level ground
Range40 Miles (64 Kilometers)
Seating Capacity4 adults
Curb Weight2,882 Pounds (1,310 Kilograms)
probably without generator and air conditioning
Tires165R70-13 Czech made
Only 4540 KM (2,815 miles) on the car as of June 1 2002. Regenerative braking with on-off switch. Air conditioner powered by separate 2 HP 84VDC compressor motor under car, with separate temperature and fan speed setings. 2.5 KW 120VAC Kohler RV type generator (Range Extender) on roof, with remote control console inside car, 10L gas tank under the car filled from original fuel filler cap. I have a complete set of specifications and diagrams for all its EV parts and the car, owners manuals, wiring diagrams, parts list and shop manuals.
