| Owner | James Wolfe | ||
|---|---|---|---|
| Owner's Other EVs | 1982 Pontiac J2000 1993 Dodge TEVan 1988 Pontiac Fiero 1995 Solectria E-10 1999 Dodge EPIC Junior Dragster | ||
| Location | Glendale, Arizona United States map | ||
| Web/Email | WebPage | ||
| Vehicle | 1993 Dodge TEVan Factory built Electric Vehicle based on the T-115 series 5-Passenger Caravan | ||
| Motor | General Electric Separately Excited DC - 54 Kilowatts - 35 HP continous, 70 HP Peak - Oil and Air cooled | ||
| Drivetrain | FWD Transaxle by Gear Vandors. (clutch use required only for shifting between low and high forward gears) | ||
| Controller | General Electric proprietary - Solid State Microprocessors - On-Board Diagnostics | ||
| Batteries | 30 Saft STM5-180, 6.00 Volt, Nickel-Cadmium, Flooded | ||
| System Voltage | 180 Volts | ||
| Charger | Martin-Marietta Power Factor corrected, selectable 20A or 40A outputs from 120V to 220V 3-Phase inputs | ||
| Heater | 8.8 Kw 3-stage Ceramic | ||
| DC/DC Converter | General Electric Vicor modules 100A with NO 12V aux battery | ||
| Instrumentation | Motor Temp and Fuel guage shows approximate % fuel remaining | ||
| Top Speed | 70 MPH (112 KPH) The specs say 70 but I've had the SRP van over 70. | ||
| Acceleration | - 0-30 MPH: 9.0 Seconds - 25-50 MPH: 18.0 Seconds - 0-50 MPH: 25 Seconds 04-15-2012 @ SIR, (Tucson), in the quarter mile was 27.622 @ 50.40 Mph | ||
| Range | 86 Miles (138 Kilometers) - 90 Miles SAE J227a C-Cycle - 80 Miles (Estimated FUDS) - 70 Miles (Typical with A/C on) - 60 Miles (Typical with Heater on) | ||
| Watt Hours/Mile | 500 Wh/Mile From SRP van experience | ||
| EV Miles |
| ||
| Seating Capacity | 5 passengers | ||
| Curb Weight | 5,060 Pounds (2,300 Kilograms) Payload is speced @ 5 Passengers + 50 Lbs or 840 Lbs Total Cargo. (GVW is 5900 Lbs) | ||
| Conversion Cost | This Van sold new for $120,000 | ||
| Originally this 47th TEVan was sold to Niagra Mohawk in upstate New York. It was sold at auction and made it's way to California where I purchased it on 08-06-2011 and brought it to Glendale, Arizona. 21-10-2011: It goes on the charger at 9:00 Pm tonight.. with it's 18+ year old batteries. it's alive! 04-01-2012: Turned over 6850 miles this evening. Haven't found why it wants to regen in High gear as soon as the accelerator is released, that really hurts the range. 04-15-2012: Ran the quarter mile at Southwest International Raceway in Tucson and came within .1 second and .05 Mph of tyeing the record for SP/C. The record is 27.525 @ 50.44. I ran 27.622 @ 50.40 on 19 year old batteries no less! | |||

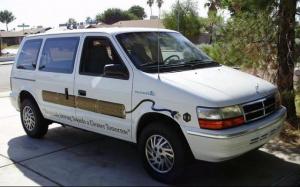

1993 Dodge TEVan
“The Mohawk van”
Last Updated 05-30-2013
