OwnerArdjan Houtekamer
Owner's Other EVAltra e-Bike
LocationGoes, Zeeland Netherlands map
Email email image
Vehicle1999 Suzuki GSX 750

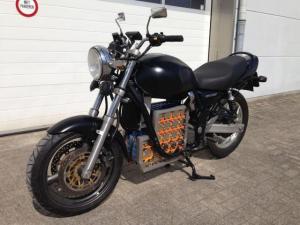

Finally after 2 years on and off working on the bike, it's finished...

After more driving experience I'll post more range and efficiency
information...
MotorEnerTrac MHM-602 Permanent Magnet DC
10kW/30kW Hub-motor
ControllerKelly KHB14301
144V
150Amp continuous
300Amp peak
Batteries96 Headway 40152 S-cell 15Ah, 144.00 Volt, Lithium Iron Phosphate
cylindrical batteries
System Voltage13 Volts
Charger G-CHB1000
5Ah
DC/DC ConverterKelly HWZ Series
156V to 13.5V 25A
Top SpeedNot yet tried
AccelerationDepending on Torque or Speed mode, have to be understood
better first
Seating Capacity2
Conversion Time2 years
