Wescuin a Wounded WabbitCD ChangerYou can almost hear it
OwnerJohn Wayland
Owner's Other EVs1972 Datsun 1200
1968 Datsun Mini truck
Pee Wee
1972 Datsun 1200
3 Wheel Industrial Cart
2000 Honda Insight
LocationPortland, Oregon United States map
Web/EmailWebPage email image

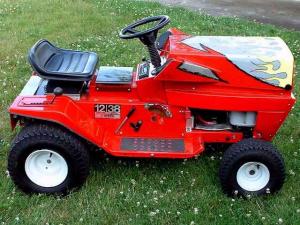

VehicleMTD
garden tractor
MotorWestinghouse Series Wound DC
4.5 HP
DrivetrainBelt drive, 7 speed
ControllerDAX
300 Amp
Batteries6 Exide Orbital, 12.00 Volt, Lead-Acid, AGM
50 Ah,
Special thanks to Exide Batteries for their support
System Voltage36 Volts
Charger
30 Amp air-cooled transformer type, 'Ugly Box' 240 VAC, 30 Amp PFC series, all via 50 Amp Anderson port.
DC/DC ConverterMicro Verter
17 Amp, with 12 Volt, 13 Ah Hawker AGM. Floats at 13.1 Volts, raises to 14.5 Volts with key on.
InstrumentationE-meter
Top Speed5 MPH ( 8 KPH)
Range15 Miles (24 Kilometers)
maybe
Seating Capacity1 fun-loving individual
Curb Weight500 Pounds (227 Kilograms)
approximately
TiresStock tractor affair
Additional FeaturesStainless steel brackets and hardware by "Frank the Metal God"
Red body paint with custom 3D cowl metal flake paint, featuring purple-tinged yellow flames
144 watt (rms) stereo system with Sony CD head unit
Custom made front stage pods fitted with 5 inch Phoenix Gold coaxial speakers
8 inch Phoenix Gold bass reflex sub woofer driven by Phoenix Gold amplifier
10 disc Sony CD changer
All high current conductors and gold plated terminals by Phoenix Gold

Thanks again to Phoenix Gold for their support

On board 400w 120vac inverter (matching red color, of course).
Receiver hitch tow kit
Lexan battery & sub covers
Electric powered since '97
