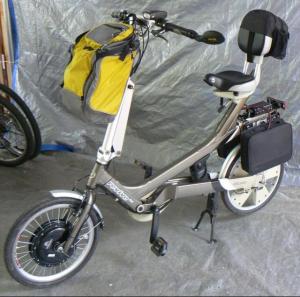

side viewthrottle detailbattery and controller detailfront side without pannier
OwnerSteve Boser
Owner's Other EVse bike v1.5
2009 Tidalforce S-750
2006 Actionbent E-Jetstream
1980 Worksman Adaptable
2010 KMX Cobra Tadpole recumbent
e bike v1.55
2010 KMX Cobra Recumbent Quad
LocationAloha, Oregon United States map
Email email image
Vehicle2003 GIANT Revive
WebPage

Revive is the ultimate comfort bike with a neutral riding position and adjustability for riders from 5'-6'6".
Well that's what Giants archive says anyway.
I have to admit, its a cushy ride, I particularly fun to dive into corners. This bike in non-motorized form wouldn't make a very good commuter, more of a gated community cruiser
Motor ebikekit / Nine continent hub motor Brushless DC
just your standard run of the mill ebike motor
DrivetrainShimano Nexus 7-Speed, twist grip for pedal power.
Electric drive is a front ebikekit 20 inch wheel
Controller 9 fet generic chinese controller
Batteries160 Bosch Fatpacks, 36.00 Volt, Lithium-Ion
8 Bosch BT836 fatpack tool packs in parallel. each tool pack has 20, 3.7 volt individual cells
System Voltage36 Volts
Charger Bosch
HeaterN/A
DC/DC Converter none
Instrumentationfactory cycle computer
Top Speed25 MPH (40 KPH)
Range20 Miles (32 Kilometers)
Longest ride has been 20 miles on varying terrain, got home with 70% charge
Watt Hours/Mileunknown to date, still haven't purchased a cycle analyst yet
EV Miles
Current:175 Miles (281 Kilometers)

    As of 9/13/2011
Seating Capacity1 adult
Curb Weight0
unknown to date
Tires20 inch x 1.75
Conversion Time6 months and on going
Conversion Cost$1200
Additional FeaturesRevised once again. I came across a like new Norvara Safari pannier, but only one, so I created a pannier mount for the front of the bike. The pannier adds additional removable cargo space and when full creates a nice curved wind breaker, not quite a fairing. Batteries have been removed from their original plastic housing and are now installed in two removable side bags, 4 in each bag
