OwnerMarc Cyr
Owner's Other EVsFat Cruiser
Bladez
ultrascooter
Skillsaw Powered Three Wheeler
Boreem
Ripper #2
LocationPort Charlotte, Florida United States map
Email email image
VehicleKazuma Meerkat 90
the ice from this bike was put into a bigger chassis as an upgrade for my little guy.it collected dust for a couple years in the shed before the conversion
Motorunknown unipac 24v Permanent Magnet DC
a $20.00 ebay find,advertised as a mobility scooter motor,and of course i overvolted it
Drivetrainjackshaft made from a bmx rear hub with a freewheel.#25 primary chain,bicycle secondary.14:1 ratio
ControllerYi Yun ct660b9
36 volt 40 amp.these are great little controllers,i've had good luck with these in past projects
Batteries3 Universal Batteries 12v 18ah, 12.00 Volt, Lead-Acid, AGM
System Voltage36 Volts
Charger
cheap chinese 36v
HeaterFlorida sun
Top Speed15 MPH (24 KPH)
originally geared for 22 mph,but decided it needed more grunt
Accelerationgreat with a 60lb. kid on it
Range14 Miles (22 Kilometers)
I have no clue, but he can ride for two hours before it starts to get tired
Seating Capacity1 adult
Tiresyes,4 offroad
Conversion Time1 month
Conversion Cost$150.00

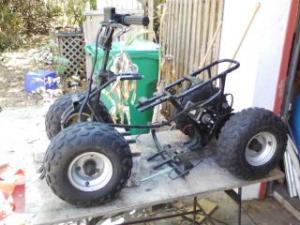

Additional FeaturesThe original frame was chopped and stretched five inches, I made custom wheel spacers for the rear, a total of four inches wider.
This quad is'nt very fast but it has gobs of torque, it does good on moderate hills, sand, mud, etc. It takes him wherever he wants to go.
