Rear view showing bottom of battery boxUnder the hoodBatteries in rear
OwnerScott Cornell
Owner's Other EVs1993 Kewet EL-JET 3
1968 VW Karmann Ghia
1984 Sinclair C5
LocationPleasant Hill, California United States map
Email email image

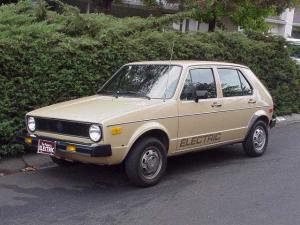

Vehicle1979 Volkswagen Rabbit
MotorPrestolite MTC 4001 Series Wound DC
(like Advance DC's 6.7 inch)
Drivetrain5 speed transmission (stock VW)
ControllerCurtis 1221
(old, silent type)
Batteries16 US Battery US-2200, 6.00 Volt, Lead-Acid, Flooded
System Voltage96 Volts
ChargerZivan NG-3
120 VAC in, 96 Volt 15 Amp out
HeaterResistance, in old heater core location
DC/DC ConverterSevcon
300 Watt
Instrumentationa) Speedometer b) Battery volts c) Battery amps
Top Speed80 MPH (128 KPH)
Range50 Miles (80 Kilometers)
typical
Seating Capacity4 adults or 1 adult and 4 children
Curb Weight3,000 Pounds (1,363 Kilograms)
TiresGoodyear Integrity 165 80 R 13
Conversion Time18 months
Conversion Cost$5000
A note from Scott Cornell: Anna Cornell (my wife) has been driving electrics since 1985 when we got married. She wanted to know more about EVs, and wanted to convert one herself, so we bought a dead Rabbit diesel, and together spent 18 months converting it. She did a vast majority of the work herself, I engineered the car for her, and helped with the heavy lifting. With very few exceptions, she does not drive anything but electric vehicles (it has been over 3 years since she drove a gas car, and before that, she went over 10 years without driving a gas car). We have 2 children, and from the very beginning (their first trip home from the birthing center - in an EV) they seem to regard EVs as the norm at our household. This conversion based on Voltsrabbit kit by Electro Automotive. This was a training exercise (our 4th electric conversion)
