Back battery packFront battery packPWM controllerInsideMotor and gearbox
OwnerAlex Brooy
LocationVinnitsa, Vinnytsia Ukraine map
Web/EmailWebPage email image

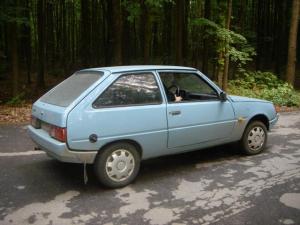

Vehicle1994 ZAZ Tavria ZAZ 1102
1.1 carburetor gasoline engine, 5 gears, 5 seats
Made in Ukraine
Motor DC 3.6/7.5/14 Series Wound DC
Old Bulgarian DC motor, 7.5 kW 72V nominal
today it is WebPage
Controller PWM 350A
Self-made PWM 15kHz controller, 350A current limit, 140V max.
Batteries32 Thunder Sky TS-LFP90AHA, 3.30 Volt, Lithium-Polymer
"Earlier" model with 3000 cycle 70%DOD
System Voltage110 Volts
Charger
Automatic self-made 0.8kW charger.
+Chineese 2kW charger
HeaterElectrical heater 1kW. It is not enough when the temperature is -20C outside. So the gas heater is in progress.
DC/DC Converter 12V 300W
Self-made dc\dc, 300W max.power
InstrumentationAmp-meter, voltmeter. I have no BMS yet, but in mind.
Top Speed50 MPH (80 KPH)
Maximum speed 90km\h
Ordinary city speed 50-60 km\h
Accelerationdidn't measure
Rangein summer: 75 km max
in winter: 40-50 km max
Watt Hours/Mile90 Wh/Mile
EV Miles
Start:37,162 Miles (59,793 Kilometers)
Current:49,050 Miles (78,921 Kilometers)
Total:11,888 Miles (19,127 Kilometers)
Seating Capacity4 adults
Tires155\R13
Conversion TimeAbout half a year on holidays and vacations.
Conversion Costbattery $5000
motor $500
charger $250
dc\dc $100
PWM controller $400
Recuperator $300
Additional FeaturesYou can congratulate me. Now I have made regenerative breaker that helps me to get regen on my SERIES DC motor. I left my PWM controller "as is". Just added a special galvanicaly insulated device that excites Field winding and helps the motor to become a generator. My EV recuperator consumes about 7A at 110V, and the motor gives about 40-50A of current back into the traction battery at the same.
All news and updates see on my webpage : WebPage
"Electricmobile" section has both russian and english variants. Also there is english-speaking forum. You are welcome!
