OwnerHarold de Gouw
LocationDrunen, Noord-Brabant Netherlands map
WebWebPage

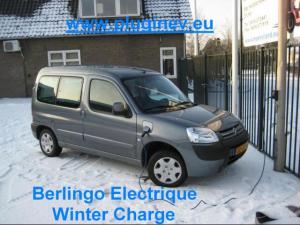

Vehicle2004 Citroen Berlingo Electrique
This EV was rebuild in 2009, and was converted from an electric van to a 5 seater.
MotorLeroy Somer SA18 Separately Excited DC
Rated power: 15.5 kW, Maximum power: 28 kW Maximum torque: 180 Nm, engine cooled by forced air.
DrivetrainNo gearbox, no clutch, single-ratio front wheel drive transmission.
The gear lever is based on that of an automatic transmission:
P : parking
R: reverse
N: neutral
D : drive
ControllerSagem OEM
Single-IGBT controller, 300A armature and 10A field drive. Water cooled
Batteries27 Saft STM5-100, 6.00 Volt, Nickel-Cadmium, Flooded
cooled by water, divided between the front compartment and rear floor, lifetime 1600 cycles (approximately 100 000 km)
System Voltage162 Volts
ChargerSagem OEM
3kW isolated charger, water cooled
HeaterWebasto Diesel
fuel tank (8.5 liters diesel) to supply the Webasto heater
DC/DC ConverterSagem OEM
1kW, water cooled
Top Speed60 MPH (96 KPH)
Accelerationacceleration from 0 to 50 km/h (31mph): 8.4 s
Range60 Miles (96 Kilometers)
Depending on drive style
Watt Hours/Mile400 Wh/Mile
To be checked
EV Miles
Start:9,510 Miles (15,301 Kilometers)
Current:43,500 Miles (69,991 Kilometers)
Total:33,990 Miles (54,689 Kilometers)

    As of 4/22/2016
Seating Capacity5 adults
Curb Weight0
Weight in running order: 1450 kg Payload: 500 kg
TiresMichelin Agilis 61
Conversion TimeAcceptable, not ready yet.
Conversion Costdon't ask
Additional FeaturesEquipment: electric windows , central locking radio controlled, hydraulic power steering.
