OwnerBorce Trajkovski
Owner's Other EVPimped Chinese kid's electric bike
LocationBitola, Pelagonia North Macedonia map
Web/EmailWebPage email image

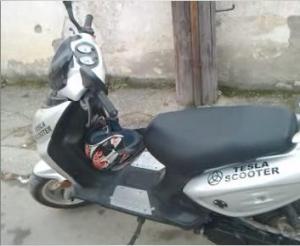

Vehicle2006 Baotian BT50
Original vehicle was a Chinese Baotian BT50T scooter.
MotorISKRA 3KW 3-Phase AC
900Rpm 6 pole 3 phase AC induction motor, 3KW continuous, 6KW peak.
DrivetrainBelt + Reductor
Controller Home made MCU based 3 Phase AC controller
Home made multifunction 3 Phase AC controller powered by 40MHz Micro-controller board, controlling throttle, speed, power. Adjustable: Max speed, Max power, throttle response.
Batteries9 HQ, 12.00 Volt, Lead-Acid, AGM
12Ah Total of 1.3KWh
System Voltage108 Volts
Charger
Home made universal 250W charger with over voltage protection.
Heater100W battery heater for winter months.
DC/DC Converter
Home made 100W 110V to 12V DC/DC converter.
InstrumentationOriginal scooter instrumentation + converted fuel level indicator to show battery level instead.
Top Speed30 MPH (48 KPH)
On flat ground, more on slight downhill.
AccelerationAwesome acceleration, 1.5 seconds to 20KM/h, 5 seconds to top speed.
Range15 Miles (24 Kilometers)
Range is not so great because of the vehicle weight, but will be tippled when new LiFePo4 batteries are installed.
Watt Hours/Mile90 Wh/Mile
We hope for more with LiFePo4 because SLA batteries have Peukert effect.
EV Miles
Start:5,460 Miles (8,785 Kilometers)
Current:5,510 Miles (8,865 Kilometers)
Total:50 Miles (80 Kilometers)

    As of 12/12/2009
Seating Capacity2 adults
Curb Weight310 Pounds (140 Kilograms)
Almost 40% of weight goes to the batteries but new LiFePo4 batteries will change this to less than 20%.
Tires12 inch
Conversion Time5 months including custom electronics.
Conversion Cost600$ without base vehicle.
Additional FeaturesHas regenerative braking when going downhill (accelerating) and throttle at half.
Has a reverse gear when you press the starter button.
Has safety features, it will not start when the throttle is more than 30% and key is turned and it will not start when charger is still connected.
Also it has thumb kill-switch and parking bar which disables the drive power.
As far as I know, this is first high power 3 phase AC induction motor (Tesla motor) powered scooter.

Converted By Borce Trajkovski and Vasko Ackovski from Bitola, Macedonia.

If you want to contact me for any reason, write an email.
