Northwest Electrathon Champion for 2010
OwnerZaine Stapleton
LocationPortland, Oregon United States map
Email email image

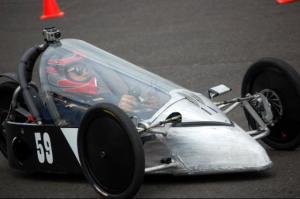

Vehicle2010 State Champion Electrathon Aluminum frame
This is my new car I built. Biggest
difference is the new back end that sweeps
in, and the two piece nose.
MotorBriggs and Stratton ETEK motor Permanent Magnet DC
This is a real ETEK motor. Original is
better.
DrivetrainRear wheel drive. Has 35 pitch chain to
drive the rear wheel.
ControllerAlltrax AXE 4834P
Got off of eBay as lightly used. Choose
the AXE
model to change settings if needed.
Batteries2 Optima Red top 75/25, 25, 35. Yellow top D75/25, D35., 12.00 Volt, Lead-Acid, AGM
There are actually 4 batteries; 2 for
practice and 2 for race.
System Voltage24 Volts
ChargerIota DLS-30
Found on Craigslist as used. Put
stereo cable with gator clips to hook
up to the batteries. I'm really pleased
with the Iota charger, it works really
well for what I am doing. To charge up
a discharged set of Yellow tops after a
race takes a little under 4 hours with
the voltage jack plugged in.
HeaterTrust me, if you racing in electrathon,
you get heated up by
all of the excitement during a race!
DC/DC Converter None
The Cycle Analyst is wired into the
Alltrax controller and 200a shunt running
off the racing batteries.
InstrumentationCycle analyst HC-LS version.
Top Speed46 MPH (74 KPH)
Depends on the track that dictates gear
ratio. Most tracks with lots of turns
and some hills is 25-30mph. The 46mph
was achieved during practice at
Portland International Raceway (PIR)
using the lowest gearing I had.
AccelerationNever tested it before. Depends on if the
Red tops or the Yellow tops are in and
what ratio is in the car.
Range20 Miles (32 Kilometers)
Depends on how fast your going and if your
using the
throttle wisely for the hour long race.
Watt Hours/MileI actually need to move the speedometer
sensor to the back wheel, originally on
the left front wheel.
EV Miles
Current:204 Miles (328 Kilometers)
Seating Capacity1 driver, if driving slow; one person can
stand on the back of
the car on the rear wheel supports.
Curb Weight300 Pounds (136 Kilograms)
Unknown, I've yet to weigh the car. And it
depends if the car has Red tops or Yellow
tops in it too. I'm guessing somewhere
between 300-400lbs.
TiresThree Maxxis Hookworm 20"x1.95". Tire
pressure at max on
all three.
Conversion TimeAbout 6 months to get all of the parts.
About 8 weeks in the
summer to weld a frame and have the car
rolling under
power. For the second frame, about 2
months.
Conversion CostAbout $1500 for the first car, about $1000
for the new frame (I took the parts from
the old frame, David Douglas High School
put their own electrical parts and wheels
on the donated frame.)
Additional FeaturesThe car has a rack and pinion steering system (thanks to
Kirk for the help you have
been.) Built form aluminum electrical conduit tubing
consisting of 1" OD and 3/4" OD, 1/8" and 1/16" aluminum
plate. Has a Simpson 5-point racing belt; cars have
flipped
before during races. 2 Avid
BB7 disc brakes on the front wheels. Car configured as a
cycle-car (2 wheels in the
front, 1 in the back.) Rear wheel drive. Speedometer now
located to the rear wheel for more accurate speed and
results. Really fun to
drive. For the lap counting device called the
transponder,
each one is numbered. Mine happens to be numbered 59 :]
For
the 2010 racing season with my new car, car #59
finished in first place in the Northwest racing series.
