OwnerGerald Sibley
Owner's Other EVsElectric Bike
Blue Bike
Schwinn Montague
Mikey's bike-E
LocationQuebec Canada map
Email email image

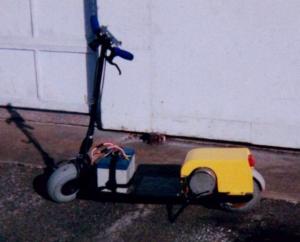

Vehicle
Hand made all the way
Motor Permanent Magnet DC
.5 HP 24v parallel shaft gearbox wheelchair
Drivetrain#40 chain and sprockets
Controller
relays. (series/parallel)
Batteries2, 12.00 Volt, Lead-Acid, AGM
28 Ah
System Voltage24 Volts
ChargerEV Warrior
24 Volt 5 Amp, automatic 3 stage, surplus
DC/DC Converter
based on LM317t
InstrumentationFeel of wind in my hair.
Top Speed15 MPH (24 KPH)
Range12 Miles (19 Kilometers)
varies with hills
Seating Capacity1 adult normally
Curb Weight92 Pounds (41 Kilograms)
Tires260 X 85 tube type non marking wheel chair tires
Conversion Time4 months to build and all summer to test
Additional FeaturesHand laid fiberglass deck, battery box and rear fender.
Rear fender can withstand 300 pound load.
LED based flashing rear marker light.
Custom disk brake on rear wheel.
Parking brake.
Headlight and kickstand.
