These are the pictures are from the EBayIntelligent Battery Chargers The under side from the rear.Out with the old and in with the new.Mark 1 When it was a vanNew Flatbed Made & Canopy re-fitted 4 stage resistive controller, main conta
OwnerNathan Langley (KNL Electrical Service South West)
Owner's Other EVs1971 Morrison Milk Float
Raleigh Aztec
Electric Flat Bed Trolly
Mobility Scooter Pickup
LocationSt Austell, England United Kingdom map
WebWebPage

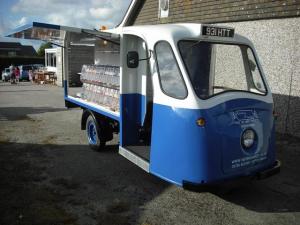

Vehicle1961 Wales and Edwards Electric Milk Float
Yes I now have two of them. I picked her up Sunday 21-6-09. She looks a bit tatty but she structurally sound we lowered her off the recovery truck connected three 12v batteries in series and off she went, not bad considering she had been stood for 20 years in the same spot.
MotorElectro Dynamic Ltd T.E. 67614N Series Wound DC
28.5V, 90A, 1940rpm
DrivetrainDirect drive to rear axel via a reduction chain.
ControllerCurtis 1204
24V-36V 275A upgraded to 400A with High Pedal Disable.
Batteries12 Yuasa Endurance 160Ah 6V (EN160-6), 6.00 Volt, Lead-Acid, AGM
System Voltage36 Volts
ChargerWestinghouse FGVW15/30
HeaterNot anymore the new controller barely gets warm unlike the old resistive heater in the front.
DC/DC ConverterMeanwell SD-200C
Picked up from... you got it good old EBay
InstrumentationAt the moment it now has indicators, brake, fog and reversing lights. Ruther than just a head light and side lights.
Top Speed12 MPH (19 KPH)
RangeUnknown
Seating Capacity2 slim adults
Curb Weight1,984 Pounds (901 Kilograms)
899.9kg
Tires3 of them
23x5 10 Ply Rating Tubed Tires Still in good condition after all this time, just need new tubes.
