Cycle AnalystCrystalyte 407 Rear Hub MotorRear Battery mountedRear Disc BrakeRear Battery Support BracketGerman Ammo BoxCustom Cree HeadlightInside Ammo BoxPing Battery
OwnerJames Parsons
Owner's Other EV1996 Honda Integra
LocationMelbourne, Victoria Australia map
Email email image

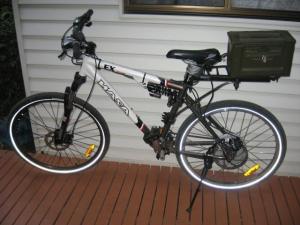

Vehicle2009 HASA Dual Suspension Mountain Bike
MotorCrystalyte 407 Brushless DC
ControllerCrystalyte 20A Pedal First
Batteries1 Ping 48V16Ah, 48.00 Volt, Lithium-Ion
System Voltage48 Volts
Charger Ping 2A
InstrumentationCycle Analyst
Top Speed26 MPH (41 KPH)
42km/h(26mph) level ground top speed no pedal.
AccelerationGood, especially when assisted by pedaling.
Range31 Miles (49 Kilometers)
Flat out I get 50km(31mi) range. Limit speed to 35km/h(22mph) and it doubles to 100km(62mi). I pedal as much as possible but still hold the throttle on max.
Watt Hours/Mile26 Wh/Mile
EV Miles
Current:2,050 Miles (3,298 Kilometers)

    As of 1/11/2010
Seating Capacity1 adult
TiresSchwalbe Touring tyres.
Conversion Time3 Weeks
Conversion CostAU$3500
Additional Features2 Way motorcycle alarm
3 CREE LED headlight (500lumen)
^--Both run off 50W DC-DC Converter
