OwnerAdam Mase
LocationVancouver, Washington United States map
Web/EmailWebPage email image

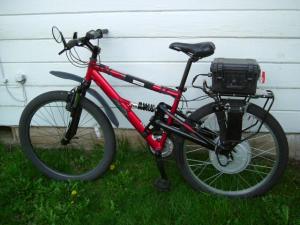

Vehicle2008 ZED DS
K2 full suspension bicycle with
Crystalyte electric components
MotorCrystalyte 5304 Brushless DC
26" wheel with 7 speed cassette



DrivetrainRear hub motor
ControllerCrystalyte 72v 35A controller
BatteriesPing 20AH LiFePO4, 48.00 Volt, Lithium-Ion
Capacity: 20 Amp Hours
Dimension: 150x220x220 mm ( 6 x 8 1/2x
8 1/2 inches )
Weight: 9.00 kg ( 20.00 lbs)
Charging Voltage: 61 Volts

Case: Pelican brand waterproof


System Voltage48 Volts
InstrumentationDirect plug-in Cycle Analyst
Top Speed30 MPH (48 KPH)
On the downhill goes up to 34MPH.
Cruises at 28-30. Maintains speed up
moderate hills. High wind really bogs
you down though, and burns up your AH,
as you are not very aerodynamic.
AccelerationSimilar to most cars away from a stop,
if the car is not trying.
Range25 Miles (40 Kilometers)
With the 48V/20AH battery, you are
guaranteed 20-25 miles no matter the
conditions (30MPH with hills etc.).
Based on my travels, I imagine this
could be doubled with careful use of
energy, but have not had reason to try.
EV Miles
Current:1,364 Miles (2,194 Kilometers)

    As of 4/23/2009
Seating Capacity1 adult
TiresMaxxis Hookworm
Conversion CostApprox $2000 including accessories etc.
