Pre-wired Control BoxExternal Connections
OwnerCarlo Zaskorski
Owner's Other EVs1995 Volvo 850
1996 Chevrolet S-10
LocationBellevue, Washington United States map
Web/EmailWebPage email image

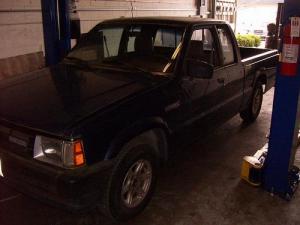

Vehicle1990 Mazda B2600i
Mazda B2600i extended cab conversion.
MotorAdvanced DC FB1-4001A Series Wound DC
ControllerCurtis 1221
Batteries10 Interstate Group 27 Deep Cycle, 12.00 Volt, Lead-Acid, Flooded
System Voltage120 Volts
ChargerQuick Charge OP-120
HeaterNone
DC/DC ConverterAstrodyne SD-350
InstrumentationVoltmeter, Ammeter, SOC
Top Speed65 MPH (104 KPH)
Range15 Miles (24 Kilometers)
EV Miles
Start:244,000 Miles (392,596 Kilometers)
Current:244,015 Miles (392,620 Kilometers)
Total:15 Miles (24 Kilometers)

    As of 2/24/2009
Seating Capacity2 adults
Curb Weight4,000 Pounds (1,818 Kilograms)
Additional FeaturesPre-wired control box by Electric Vehicle Supply (www.ev-supply.com) incorporates the entire wiring diagram into one device, by placing the charger, DC/DC converter, relays and all high voltage components into a single box. External connections to the battery pack and controller are made with Anderson connectors.
