OwnerEvan Tuer
Owner's Other EVs1976 Reliant Kitten
1998 Citroen Berlingo 500E
LocationFife, Scotland United Kingdom map
Web/EmailWebPage email image

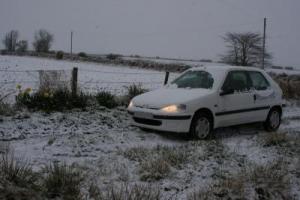

Vehicle1998 Peugeot 106 Electrique
4 seat electric city car, factory built.
Originally used Saft Nicad battery but in this car it was
defective and only lasted 11000 miles. Now changed to
Lithium battery.
MotorLeroy Somer SA-12 Separately Excited DC
12kW continuous 120V sep-ex, 10A field.
DrivetrainLeroy Somer motor with single ratio transmission.
ControllerSAGEM
IGBT controller
Batteries40 CALB/Skyenergy SE180, 3.20 Volt, Lithium-Ion
Lithium batteries retrofitted in two cases under the car.
System Voltage120 Volts
ChargerSagem
Integrated charger, 230VAC 13A supply.
HeaterWebasto 5kw petrol heater.
DC/DC ConverterSagem
Integrated DC-DC, 100A
InstrumentationStandard energy meter and speedo.
Top Speed62 MPH (99 KPH)
Range100 Miles (160 Kilometers)
Range tested on 20/05/10 - trip made on A90 at 55-
60mph. DOD: 85%
EV Miles
Start:11,000 Miles (17,699 Kilometers)
Current:23,000 Miles (37,007 Kilometers)
Total:12,000 Miles (19,308 Kilometers)

    As of 11/17/2010
Seating Capacity4 adults
Curb Weight2,600 Pounds (1,181 Kilograms)
TiresMichelin Energy
