frontexposedother sidegaugesearly photomoch-up200 led headlightvery early picme on bike
OwnerTony
Owner's Other EV1994 Suzuki GSXR TTXGP race bike
LocationGrand Rapids , Michigan United States map
Email email image
Vehicle1975 Yamaha RD250

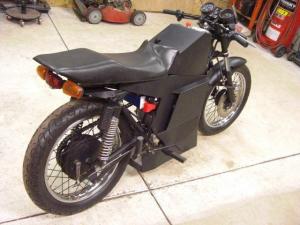

it was a 75' yamaha rd250

video-
WebPage
MotorBriggs and Stratton etek Permanent Magnet DC
Drivetrainoriginally a 2-stroke 250
ControllerAlltrax 4834
Batteries3, 12.00 Volt, Lead-Acid, AGM
System Voltage36 Volts
DC/DC Converter
green galaxy 24-72v to 12v 10a
Instrumentationone Curtis "fuel" gauge and one universal amp gauge
Top Speed91 MPH (146 KPH)
believe me, this is the top speed, it was not easy to accomplish
Accelerationincredibly fast, when coupled with the 6-speed transmission
Range24 Miles (38 Kilometers)
when driven lightly
Seating Capacity1 adult
Curb Weight0
unsure, i will weigh it when i can get another scale and a friend over here
Tiresbrand new Michelin tires
Conversion Time184 days, usually working on it after work
Conversion Cost$2500 with bike
Additional FeaturesThis bike is coupled with the 6-speed transmission therefore I can have lighting fast acceleration and incredible top speeds. I was sick of all the EV's that are long range golf carts, that are no fun to drive and you look like a moron in them. I wanted to break the barrier of electric vehicles being the little brother of internal combustion vehicles. I'm already working on another motorcycle that should out-perform this motorcycle in every way.

Thanks for looking
