Chris' 1992 Honda Civic

Owner	Chris
Location	Sandy, Utah United States ^map
Vehicle	1992 Honda Civic
Motor	Warfield Warp 9 Impulse Series Wound DC
Controller	Kelly KDH12600B

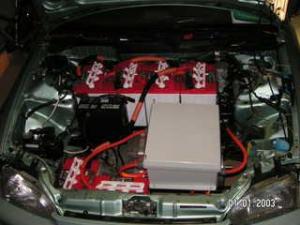

Batteries	15 Interstate UGC8 (Us Battery 8V), 8.00 Volt, Lead-Acid, Flooded
System Voltage	120 Volts
Heater	none yet, will be ceramic 1500w
DC/DC Converter	Iota 55AMP
Instrumentation	Digital amp and volt meters, working on Led bar graph meter for 12v system
Top Speed	70 MPH (112 KPH) Have only taken for a couple short drives and have not taken on the freeway yet.
Acceleration	Good Acceleration as good as ICE
Range	40 Miles (64 Kilometers) Shooting for 35-40 miles
Seating Capacity	Factory 5 seats
Tires	16 in Wheels and tires off of a 2008 Honda Fit.
Conversion Time	A lot of planing. and building probably at least 90-100 Hours.
Conversion Cost	$8500
I am about 95% done, need to finish the heater, fix a gauge problem, finish battery hold downs and make the vacuum pump more quiet.
