BatteriesAC MotorDrive Coupling
OwnerMark Taylor
LocationSydney, New South Wales Australia map
WebWebPage

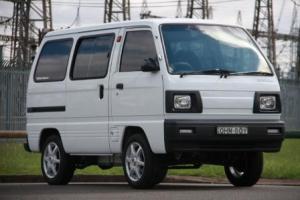

Vehicle1990 Suzuki Carry Van
Purchased off eBay with a seized camshaft.
MotorAdvanced DC FB1-4001
DrivetrainClutchless 5 speed
Rear wheel drive
ControllerEvnetics Soliton Jr
Batteries450 Headway 16Ah, 3.20 Volt, Lithium-Ion
45 series 10 parellel
System Voltage144 Volts
ChargerElcon
Controlled by 45 locally designed Batrium BMS
modules and Batrium PackMon.
Heaterceramic 110 volt
DC/DC ConverterIota DLS-45-DC
InstrumentationWindows touch pad
Top Speed60 MPH (96 KPH)
AccelerationBetter than ICE powered
Range75 Miles (120 Kilometers)
EV Miles
Start:278,325 Miles (447,824 Kilometers)
Current:295,456 Miles (475,388 Kilometers)
Total:17,131 Miles (27,563 Kilometers)

    As of 9/30/2019
Seating Capacity4
Curb Weight2,205 Pounds (1,002 Kilograms)
1000kg with lithium.
Tires165/65x14
Conversion TimeToo long
Conversion CostOver $10,000 and climbing
Additional FeaturesLED tail light and front lights. Alloy wheels. Aero mirrors
I've been driving ohmboy for nearly 3 years and it is an excellent
EV. Especially since the replacement of Lead Acid with Lithium. It
gets good range and has no problem keeping up with traffic.

Curtis was having issues so upgraded to Soliton Jr. This pushed my 8
inch Advenced DC beyond its limits. Have now installed Advanced DC 9
inch motor
