OwnerAndrew
Owner's Other EV1988 Mazda B2200
LocationFlint, Michigan United States map
Web/EmailWebPage email image

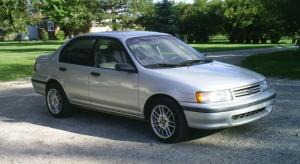

Vehicle1992 Toyota Tercel
MotorKostov 10.5 Series Wound DC
Monster Kostov motor. Should provide plenty of torque.
Drivetrain5 speed stick
Controllerunknown
I'm working on a homebuilt controller, but don't know if I'll finish it in the near future. I may end up borrowing the Raptor out of my Mazda.
Batteries13, 12.00 Volt, Lead-Acid, Flooded
May go with 168v depending on the kind of performance I get.
System Voltage156 Volts
Charger
Going to use individual 12v chargers, one for each battery.
Top Speed80 MPH (128 KPH)
I'm hoping for at least 80. We'll see.
Range40 Miles (64 Kilometers)
Hoping for at least 40 miles.
Seating Capacity4 adults
Curb Weight2,000 Pounds (909 Kilograms)
Before conversion. Expecting to gain ~700 lbs by the time I'm done.
I'm looking for good street performance out of this car. With this kind of voltage, I'll be looking at around 120 peak shaft hp, so it should fairly quick. Torque at low rpm should be amazing!

As of now, I have the motor in the car, and I'm working on assembling all of the "little stuff." I'm expecting to have it on the road in a month or two.
