Herb-EV1Clean conversionSimple conversion6 batteries inside..2 in hood2 batterys under the hoodGuages
OwnerRobert Lange
Owner's Other EVsElectric Motorcycle
Off-Road Electric Wheelchair
F4 Drop Tank
BOB
Wood-E
1981 Jet Electrica
1978 Ez-Go Golf Cart
1987 Kawasaki KX 125
Puma
Dyno
2006 Bronco Beach Cruiser
1953 Grumman Float
1963 Rambler 440
1985 Honda CR80
LocationKelseyville, California United States map
Email email image

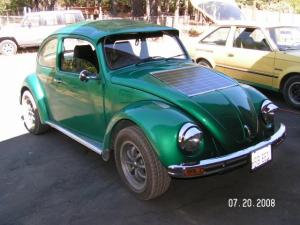

Vehicle1970 Volkswagen Bug
96 Volt Herb-ev1 able to recharge with standard 115V outlet
MotorAdvanced DC Series Wound DC
8 IN.
Drivetrain4 speed
ControllerCurtis 1221C
72-120V. 400A.
Batteries8 Dynasty 12-490 Max Rate UPS preumium plus, 12.00 Volt, Lead-Acid, AGM
140AH.
System Voltage96 Volts
ChargerSchauer
(2) 48V. 15A. hardwired
Heaterhairdryer....set on low! 500 watt
DC/DC ConverterSevcon
25A. output at 13.5V.
InstrumentationAmp / volt / percent of charge meters
Top Speed68 MPH (109 KPH)
Built for range..not top speed
Range50 Miles (80 Kilometers)
On level @ 50mph.
Seating Capacity2 adults
Tires205R-60-15 ... 44 psi max
Conversion Timeone month
Conversion Costapprox $8500.
Additional FeaturesStandard 115 volt charging
2-48V. 15Amp chargers
140AH. Battery pack
