| Owner | Bob Van Gorder |
|---|---|
| Owner's Other EVs | 1933 Rolls Royce Shooting Brake 1990 Mazda Miata 1995 Chevrolet S-10 |
| Location | Ramona, California United States map |
| Web/Email | WebPage |
| Vehicle | 1969 CONY Pick Up |
| Motor | Advanced DC XP-1227-A Series Wound DC 8 inch 28 hp cont. 100 hp peak @ 600 amps |
| Drivetrain | Direct Drive |
| Controller | Curtis 144v 500 amp |
| Batteries | 12, 12.00 Volt, Lead-Acid, AGM 55 amp |
| System Voltage | 144 Volts |
| Charger | K and W BC-20 with booster to 144v |
| Heater | California sun |
| DC/DC Converter | NONE |
| Instrumentation | Fuel gauge,amp gauge,and volt meter |
| Top Speed | 70 MPH (112 KPH) The vehicle was designed to do 47 mph as gas driven. |
| Acceleration | 12.8 in the 1/8 mile @ 44mph |
| Range | 25 Miles (40 Kilometers) |
| Seating Capacity | 2 adults |
| Curb Weight | 1,500 Pounds (681 Kilograms) gas weight was 1100 |
| Tires | 13 inch wheels from older honda |
| Conversion Time | 4 weekends |
| Conversion Cost | 7K |
| Additional Features | None |
| This was my first conversion done 11/05. I have completed two more and have two under construction. www.bobsevconversions.com Sold to Bernie Katz | |

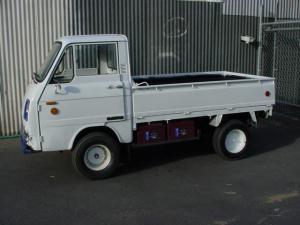

1969 CONY Pickup
Last Updated 02-28-2013
