OwnerMichael Malmberg
Owner's Other EVElectric Recumbent
LocationSacramento, California United States map
Web/EmailWebPage email image

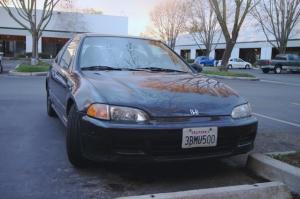

Vehicle1992 Honda Civic DX
hatchback
MotorHPEVS AC-51 3-Phase AC
vented mine has an internal encoder
Drivetrainoriginal trans axle/clutch
ControllerCurtis 1239
water-cooled (pump from EVsource) chill plate
stays pretty cool even in sacramento heat 40c
Batteries45 CALB/Skyenergy 180 amp, 3.20 Volt, Lithium Iron Phosphate
Calb SE grey cells Orion is reporting .4 -.7 IR
4 separate battery boxes
System Voltage144 Volts
ChargerElcon 5k
from Electric Conversions, has a simple circuit
for BMS to shut down charge. It is also CAN
capable but it is not integrated yet.
Heatersolid state heater core from KTA services
replaced original
core. Works great at 144 volts, worked poorly
at 96 volts
DC/DC ConverterZivan NG-1 DC to DC
150v 50amp output with 18 AH agm back-up
InstrumentationOrion BMS-with android tablet running torque.
Link 10/E-meter, analog battery amps, curtis
spyglass
Top Speed85 MPH (136 KPH)
Have not pushed it further it seems it would go
much faster
Accelerationbrisk have not tested yet
Range80 Miles (128 Kilometers)
Just did a round trip to bay area 80 miles each
way. Orion said 33% SOC on arrival and 37% SOC
on return. (charged while there)
Watt Hours/Mile265 Wh/Mile
Calculated from link 10. installed Orion BMS so
I will soon have more precise figures on this.
EV Miles
Start:25,000 Miles (40,225 Kilometers)
Current:55,000 Miles (88,495 Kilometers)
Total:30,000 Miles (48,270 Kilometers)

    As of 9/30/2019
Seating Capacity2 adults, 2 kids
Curb Weight2,600 Pounds (1,181 Kilograms)
guesstimate was about 3100 with floodies (1,050)
lithiums are about 560
TiresGoodyear Integrity
Conversion TimeBought converted, but have upgraded
controller, batteries,
DC-DC, added j1772 charging port,
instrumentation
location, battery
box covers, folding rear seat over battery
box, etc.
Conversion Cost15k just for lithium upgrade been thru 3 sets
of lead, one motor, one DC-DC. So all together
...lets not talk about it. This grin is worth
it.
Additional FeaturesPut in Avcon charging port, then j-1772 port, placed E-meter and
ammeter into dash; modified folding
jump/rear seat for easy access to mid battery compartment.
Envirotech Yuba City
originally built battery boxes, and Ground Control did suspension
components.

Up-graded to Lithium finally. Re-did some wiring. incorporated Orion
BMS, battery heaters, battery box cooling fans, front battery boxes,
high voltage cabling is in liquitite in exposed areas, installed high
voltage safety cutoff, aux contactor.
Just completed AC-51/1239 drive system with lightweight balanced
flywheel/clutch.
lithium is whole different ballgame. Orion BMS was a little complex
to set-up but it works perfectly so far. It is very cool to finally
see everything that is going on with the batteries. Live graphs with
selectable parameters. Ewert Energy has been very helpful and
responsive.

Daily driver. This is my primary car. I go to Chevron only to wash
windows or for air.
The only thing I like driving more is my electric/human hybrid
recumbent bike.
