OwnerAbel Saucedo
Owner's Other EV1997 GBS Solectria Force
LocationGlendale, Arizona United States map

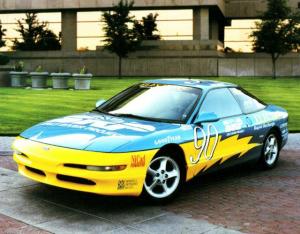

Vehicle1993 Ford Probe
Former Salt River Project Test Vehicle for
Electric Vehicle Program.

Developed by AC Propulsion
MotorAC Propulsion ACP 3-Phase AC
Four-pole induction, high frequency design
with inverter-controlled magnetic flux.
Dimensions*: 245 mm dia x 350 mm long
Total weight: 110 lb, 50 kg (incl cooilng
blower)
Maximum rpm: 12,000
Insulation: Class H, double-insulated
Cooling: Forced-air with variable speed pwm
control
Sensors: Winding temp, tachometer
DrivetrainAC Propulsion, the AC-150 (200 hp) drive train.
ControllerAC Propulsion AC-150
"Glass smooth" torque under all load and speed
conditions
Natural and transparent driving feel
Driver adjustable regeneration
Traction control
Batteries96 other LG Chem 2013 Chevy Pack, 16.60 Volt, Lithium-Ion
16.5 kWh 2013 Chevy Volt Pack
System Voltage398 Volts
Charger AC-150
Integrated Reductive Charger:
100 and 250 VAC, 50 or 60 Hz
200W up to 20kW
Automatic Mode Switching
HeaterClean and Cool Arizona Sun!

MasterFlux 06 Air Conditioning System!
DC/DC ConverterAC Propulsion AC-150
Integrated DC/DC Converter
Instrumentation- Hella TC-400 Wireless Tire Pressure System
- Rearview Camera with LCD Display
Top Speed120 MPH (193 KPH)
Set pole at 120 MPH at one of the Arizona EVTC
racing event at Firebird Raceway
Acceleration"Glass smooth" torque under all load and speed
conditions
Range40 Miles (64 Kilometers)
Approximately ten miles in race performance
settings. Approximately forty plus in driving
performance settings.
EV Miles
Start:8,000 Miles (12,872 Kilometers)
Current:10,400 Miles (16,733 Kilometers)
Total:2,400 Miles (3,861 Kilometers)
Seating Capacity2 adults
Curb Weight1,684 Pounds (765 Kilograms)
TiresEnkei RS-M wheels (14.2 LBS) with Michelin
Energy MXV4 PLUS tires (225/55R16 25 LBS).
Conversion TimeCar needed all of the following(9/23/2007):
- cleaning
- batteries
- balancing system
- tires
- home/wall charge unit
Conversion CostStill Counting!
Additional FeaturesCar is operational!
- AVcon connector installed
- EVI wall unit installed
- Batteries Pack Installed (Yellow Top Optimas)
- Balancing system Installed
- Car is now running (9/23/2007 at 9:05PM)!
- Charging system is now working (9/26/2007)
- New Tires Installed (9/29/2007)
- Hub Bolt Repaired (10/09/2007)
- Completed DMV inspections and registration (10/25/2007
- 4 to 6 weeks for my custom plates: PROB-EV
- Transmition Fluid Flushed
- Four Wheel Tire Alignment (Gained 10% efficiency)
- Sound System in using EQ, 400W AMP, and MP3 Player!
- New Interior installed by Mendozas Auto Interiors -
www.mendozasautointeriors.com (11-17-2008)
- New Carbon Fiber Hood Installed(3-20-2009)
- Enkei RS-M wheels (14.2 LBS) with Michelin Energy MXV4 PLUS
tires (225/55R16 25 LBS)(4-13-2009)
- Hella TC-400 Wireless Tire Pressure System (4-14-2009)
- Brake Vacuum MES-DEA Added(6-1-2009)
- Millenium Widebody Kit Complete (11-23-2009)
- MasterFlux06 Air Conditioning Sytem Complete(3-20-2010)
- Removed dead Yellow Top Battery Pack
11/6/2016
- Installed New Lithium Battery Pack! 2013 Chevy Volt Pack!
Driven in the Arizona EVTC races at Firebird International Raceway in
the Super Stock class, by former Indy driver Tom Sneva for Salt River
Project (SRP). Set pole at 120 MPH.
Upcoming Work for 2017:
- Power Steering
- Air suspension kit
- FULL BODY PAINT
