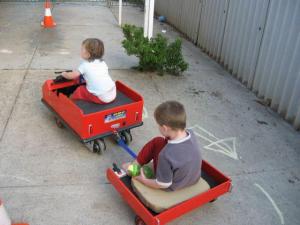

Kids Electric CarDashTrailer with long range fuel tankTrailer underside
OwnerBj
LocationPerth, Western Australia Australia map
Web/EmailWebPage email image
Vehicle2007 Home Brew
Hand Constructed with a steel frame and MDF Panels
MotorUnite Motor MY-68 Permanent Magnet DC
Drivetrain2 x 100W Scooter pre-built that I got from a wholesaler here in Oz.
Controller 500W Switchmmode
Out of a Scooter, unknown brand (just that it's 24V and 500W capable)
Batteries2 B and B 7.2Ah, 12.00 Volt, Lead-Acid, AGM
System Voltage24 Volts
Charger Home Brew 12V -> 24V Switchmode
2A continuous 24V from a 12V supply.
HeaterPerth, it's not really needed.
DC/DC Converter LM7812 TO220
the 12V car stereo is run from a split rail of the 24V a 7812 Voltage Regulator provides the ACC key feed.
InstrumentationAmmeter
Top Speed15 MPH (24 KPH)
15.5mph
AccelerationNeck snapping - no really it's quite quick!
Range5 Miles ( 8 Kilometers)
It makes it to the shops and back easy. so it would be 5km as the most ever tested between charges.
Watt Hours/Mile288 Wh/Mile
EV Miles
Current: Miles (0 Kilometers)
Seating Capacity1 + trailer
Curb Weight22 Pounds (10 Kilograms)
Tires5"x1.5" - Hard as a rock rubber
Conversion Time2 weeks
Conversion Cost$200AUS
Additional FeaturesKenwood Tape/Radio
Horn
Keystart
2 x 6-LEDs for headlights
rear tail lighting
trailer for others to travel with
Great little car for the kids and the "big kids" too :)
