Front & engine compartmentEngine compartment
OwnerEdward Malkiewicz
Owner's Other EV2012 Zero XU
LocationLas Vegas, Nevada United States map
Email email image

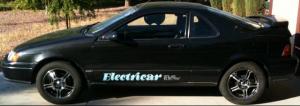

Vehicle1993 Toyota Paseo
This was a brand new factory Paseo that was converted by Electricar/Solar Electric. Previously owned by actor Leslie Nielsen.
MotorAdvanced DC Series Wound DC
DrivetrainStock manual transmission, front wheel drive.
ControllerCurtis 1231C
Batteries10 Deka 8G31, 12.00 Volt, Lead-Acid, AGM
System Voltage120 Volts
ChargerZivan NG3
144 Volt turned down to 120 Volt
Heater700 Watt inline block heater with Flojet pump using stock heater core.
DC/DC ConverterIota DC2460
30 Amps, 96-144 Volts in, 13.8/14.3 Volts out
InstrumentationAnalog 0-13VDC voltmeter, Analog 0-100% SOC meter. Digital 0-200VDC voltmeter, Digital 0-700ADC ammeter (with shunt).
Top Speed85 MPH (136 KPH)
I have had the car to an indicated 85 mph. Probably could have gone faster but
was further outlet than I would have
liked.
AccelerationHaven't checked.
Range35 Miles (56 Kilometers)
Have yet to really stress the distance, but, 20~30 miles is pretty much
a reality for my driving style.
Watt Hours/Mile362 Wh/Mile
EV Miles
Current:14 Miles (22 Kilometers)
Seating Capacity2 comfortably, 4 possible.
Curb Weight3,100 Pounds (1,409 Kilograms)
Estimated
Tires195/60R/15 Fuzion HRi at 55 psi.
