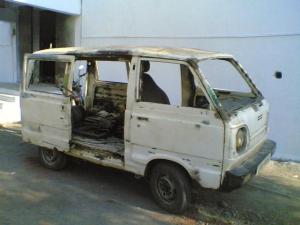

Gav Bomi Master's 1995 Suzuki Series Hybrid Van

Owner	Gav Bomi Master
Owner's Other EVs	Electric Rickshaw Electric Cubie Electric Cubie Hybrid Scooter Electric Crusader Electric Reverse Trike Electric 3 seater Scooter Rickshaw 2008 Honda Eterno SOLAR HANDICAP TRICYCLE
Location	Surat, Gujarat India ^map
Web/Email	WebPage
Vehicle	1990 Suzuki Van Petrol powered hybrid series electric vehicle
Motor	Permanent Magnet DC
Drivetrain	Manual 4 Speed and 1 Reverse
Batteries	0.00 Volt,
System Voltage	72 Volts
Charger	DC 72 Volts Directly coupled Generator to petrol engine with gearbox.
Top Speed	25 MPH (40 KPH)
Range	40 Miles (64 Kilometers)
Curb Weight	1,900 Pounds (863 Kilograms)
Conversion Time	2 Months
Conversion Cost	Rs.1,30,000/Indian
Additional Features	Vehicle runs without any type of Battery or battery bank hence there is no problem of recharging as it runs on Spark Ignition Engine of Motorbike and is coupled with DC Generator with speed reduction and current is feed to PMDC 5 kW motor which turns 4 speed forward and 1 Reverse gearbox attached with adopter plate with clutch assembly to motor's out put shaft. and it is powered through propeller shaft to rear wheels through Diffrential drive unit of 4.5:1 final drive.

Battery less Hybrid Series Van“Battery free Series Hybrid Van”
