Emilio Ugarte's 2005 3c-car

Owner	Emilio Ugarte
Owner's Other EV	2006 3C-car (2)
Location	Santiago, Las Condes Chile ^map
Web/Email	WebPage

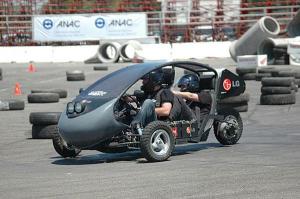

Vehicle	2005 3c-car cistom built 3 wheeler
Motor	Briggs and Stratton ETEK This is one of the most powerful DC motors available. There is nothing like it out there. Many of the most powerful spinner robots out there have been using this motor with great success (including Nightmare, Son of Whyachi, Moebius and many more). WARNING: this motor is NOT an ordinary motor, and should be handled with GREAT care. It is very capable of serious power and should always be completely secured before applying any power to it. 24V to 48V (has been run up to 72V) 72rpm per volt (3456rpm @ 48V) 20.8 pounds 7.91" diameter 5.64" length 7/8" shaft with 3/16" keyway and 3/8-16 Tapped center Torque constant: 1.14 in-lb/Amp (0.13 Nm/Amp) Max motor current: 330A for 2 minutes 15 horsepower max
Drivetrain	chain drive
Controller	SPEED CONTROLLERS - TEAM WHYACHI ESC If you need to proporionally and remotely control a high current brushed motor, this is the ESC for you. They just don't get much more powerful than this. This is the reversible speed control you need to run your Etek motor or PMG-132 motor properly. This control is a modified version of the standard Sevcon. It comes with the RCA Analog Interface
Batteries	4, 12.00 Volt,
System Voltage	48 Volts
