| Owner | Kim Ryan | ||||
|---|---|---|---|---|---|
| Location | Cairns, Queensland Australia map | ||||
| Web/Email | WebPage | ||||

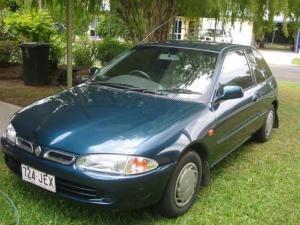

| Vehicle | 1997 Proton Satria 5 seat, 2 door coupe | ||||
| Motor | ZC7.5-72 Series Wound DC Super Zebo (China)8.5KW continious @ 120 volts | ||||
| Drivetrain | Direct drive via RAV4 rear differential located in position of front transaxle | ||||
| Controller | Curtis 1221C | ||||
| Batteries | 10 -, 12.00 Volt, Lead-Acid, AGM | ||||
| System Voltage | 120 Volts | ||||
| Charger | On board 15amp pulse charger | ||||
| Heater | None | ||||
| DC/DC Converter | None | ||||
| Instrumentation | Ammeter / Voltmeter / LCD Speedometer | ||||
| Top Speed | 60 MPH (96 KPH) | ||||
| Acceleration | Moderate | ||||
| Range | 30 Miles (48 Kilometers) Estimate only at this stage | ||||
| EV Miles |
| ||||
| Seating Capacity | 5 adults | ||||
| Curb Weight | 2,100 Pounds (954 Kilograms) | ||||
| Tires | Standard 13 inch | ||||
| Conversion Cost | $8000.00 AUD | ||||
| This vehicle was originally converted as a 72vdc vehicle, now upgraded to 120vdc for higher speeds. | |||||
1997 Proton Satria
Last Updated 12-28-2008
