OwnerDan Wentworth
LocationOttawa, Ontario Canada map
WebWebPage

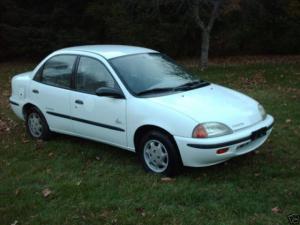

Vehicle1997 Solectria Force
Solectria Force OEM from Geo Metro glider,
white with grey interior, repainted winter
2008, purchased September 2005 from
TransOptions, Cedar Knolls, New Jersey
MotorAzure Dynamics/Solectria ACgtx20 3-Phase AC
12kW continuous
DrivetrainAC induction motor, 10:1 gear reduction,
custom length axle/CV joints
ControllerBrusa AMC325
42kW max, 32kW nominal, 200A battery, 280A
motor. branded as Solectria
Batteries13 Deka Dominator 8G27M, 12.00 Volt, Lead-Acid, Gel
original pack was replaced December 2004
System Voltage156 Volts
ChargerElcon PFC2500
11 Amps charge current on 230VAC, 8 Amps on
115VAC. Temperature compensated termination
voltage. Adapts to input AC voltage
automatically. DC output is isolated from AC
input. TCCH-156-11
Heater1200W Ceramic
DC/DC ConverterAzure Dynamics/Solectria DC-DC575
12.0 Volts output -> slow windshield wipers
InstrumentationBrusa BC29 Ah meter, Analog dual Amp/Volt
meter, Battery temperature guage, LabJack U3
individual battery monitoring.
Top Speed70 MPH (112 KPH)
Range40 Miles (64 Kilometers)
Watt Hours/Mile200 Wh/Mile
includes charger and battery losses at non-
winter temperatures.
EV Miles
Start:10,011 Miles (16,107 Kilometers)
Current:25,500 Miles (41,029 Kilometers)
Total:15,489 Miles (24,921 Kilometers)

    As of 9/13/2016
Seating Capacity4 adults
Curb Weight2,460 Pounds (1,118 Kilograms)
TiresBridgestone B420 P155/80R13
Additional FeaturesAir conditioner, AM/FM MP3 CD player, heated
batteries, cabin preheat timer,
battery+interior thermometer.
