| Owner | E-car |
|---|---|
| Location | Portland, Oregon United States map |
| Vehicle | 1965 Ford Mustang |
| Motor | Advanced DC FB1-4001 Series Wound DC 9" |
| Drivetrain | 3 speed manual transmission, 8 inch 4:11 ratio rear end |
| Controller | Curtis 1221B (non-squealer) |
| Batteries | 10 Trojan 5SHP, 12.00 Volt, Lead-Acid, Flooded 165 Ah |
| System Voltage | 120 Volts |
| Charger | K and W BC-20 |
| Heater | Ceramic 1500 watt |
| DC/DC Converter | Sevcon 25 Amp |
| Instrumentation | a) 0-150v expanded scale voltmeter b) 0-500 Amp ammeter |
| Top Speed | 85 MPH (136 KPH) |
| Range | 35 Miles (56 Kilometers) |
| Seating Capacity | 4 adults |
| Curb Weight | 3,240 Pounds (1,472 Kilograms) |
| Tires | Firestone "Ecology" LRR 195/70/14 |
| Additional Features | Featured in '95 November issue of "Mustang Illustrated" magazine Custom Springtime Yellow with platinum pearl paint by Gerhard Wagner Stainless steel battery hold-downs and all other aluminum and steel fabrication by "Frank the Metal God" four batteries under the hood with the other six recessed into the trunk floor between the frame rails with no loss of trunk space 1970 Tornio GT 11.5 inch front disc brake conversion Quickor Engineering 1.25 inch front sway bar Monroe gas shocks 14 x 7 American Racing CP200 "Coke Bottle" mags Hurst hydraulic line lock for additional emergency brake safety analog EV gauges custom set into dash cutouts for a factory look AM/FM/Cassette |
| This EV conversion was a joint project between Gerhard Wagner and EV List members John Wayland and Lou Tauber. It resulted in an EV that accelerates nicely, corners very flat, has killer brakes, and retains all the fun and excitement of Ford's original pony car, only now it doesn't drip oil and runs cleaner than a new car. | |

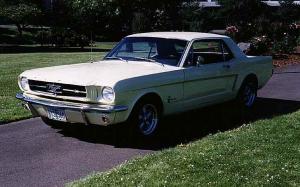

1965 Ford Mustang
Last Updated 01-08-1999
