Kyoto Cruiser 2
OwnerAtomicZombie
Owner's Other EVsSparky
Sparky 2
Megatron
The LongRanger
The CycleBully
Silent Speedster
E-Style BMX
DeltaWolf EV
LocationThunder Bay, Ontario Canada map
WebWebPage
Vehicle human-electric hybrid

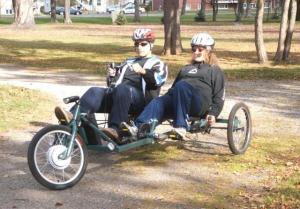

The Kyoto Cruiser Tandem Trike is designed to be a real alternative to the automobile for many short trips, errands and leisure rides. The trike has a very sturdy frame and wheels, and since seats placed side-by-side rather than inline, you can enjoy a sociable cycling experience with a partner. The electric hubmotor brings the trike up to full speed in seconds, and it can climb huge hills easily..........?
Motor
Brushless electric front hub motor.
DrivetrainDual fully independent 36 speeds per rider. Front electric direct drive brushless motor.
Controller
Brushless 36 volt 500 watt controller.
Batteries3, 12.00 Volt, Lead-Acid, Gel
System Voltage36 Volts
Charger
36 volt charger
InstrumentationBicycle spedo.
Top Speed25 MPH (40 KPH)
32km/hr using only motor. Much faster with two people pedalling.
AccelerationVery good.
RangeRange depends on terrain and human input. With three 32 AH batteries, the unit will run all day.
Seating Capacity2 carbon based units.
Curb Weight75 Pounds (34 Kilograms)
Motor and batteries can be taken out for human only power, reducing weight by 25 pounds or more.
Tires20 inch 48 spoke.
Conversion Time3 weeks
Conversion Cost$400.00
Additional FeaturesThe Kyoto Cruiser is very comfortable due to the recumbent position, but offers a seat height typical of many small cars to aid visibility and navigation in traffic. Hill climbing ability is amazing due to the full range of gears and 20-inch wheels, and each rider has his/her own independent front and rear shifting system so that each rider can work at his/her own pace and comfort level. Handling is very smooth with the ability to turn tight circles and stop efficiently thanks to the dual rear disc brakes.
