OwnerMatt Kramp
LocationSeminole, Florida United States map
Email email image

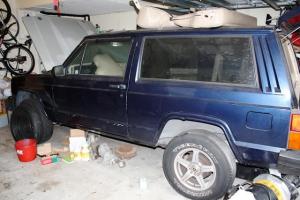

Vehicle1996 Jeep Cherokee
2Dr 2 wheel drive
MotorAzure Dynamics/Solectria AC55 3-Phase AC
DrivetrainSolectria/Azure Dynamics AC55 motor
ControllerAzure Dynamics/Solectria UMOC
Batteries96 Thunder Sky 90 ah, 3.20 Volt, Lithium Iron Phosphate
System Voltage312 Volts
ChargerManzanita Micro PFC - 40
40 amp
Heaternot needed
DC/DC ConverterAzure Dynamics/Solectria
750 watt
Top Speed80 MPH (128 KPH)
confirmed 80 mph
Accelerationwho knows
Range50 Miles (80 Kilometers)
range is estimated based upon 25 mile range with
lead batteries. I am in the process of
converting to a lithium ion battery pack with
nearly twice the capacity and 700 lb less
weight.
Seating Capacityfive
Curb Weight0
estimated to be 4000 lbs
Tiresstock
Conversion Costlikely about $17,000 when all is said and done
including cost of the vehicle
Additional FeaturesA/C has been planned but will likely be the last item completed. I
am currently working on getting the revised slightly modified (fused)
Manzanita Micro BMS up and running.
