Owner's Other EV2001 Th!nk
LocationTrondheim, Trondelag Norway map

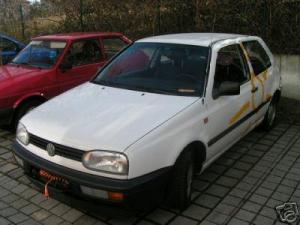

Vehicle1995 Volkswagen Golf Citystromer
MotorSiemens 1PFV 5104 6WS09-2 3-Phase AC
22kW
ControllerSiemens Simovert long
Batteries16 Varta Electro power, 6.00 Volt, Lead-Acid, Gel
160Ah
System Voltage96 Volts
ChargerSiemens 1000-1 ver6
80-160V, 3kW
HeaterEberspaecher Diesel heater 5kW
DC/DC ConverterSiemens
integrated into controller. 13.8 Volt, 100 Amp maximum output
InstrumentationNormal VW Golf ++
Top Speed100 km/h
Range55-70km. (In the cold winter 40-45km)
My normal use before charging: 20-40km
The battery is around 7 years old!!
Watt Hours/Mile298 Wh/Mile
from the 230V, around 60% of this comes too the wheels.
EV Miles
Current:40,000 Miles (64,360 Kilometers)
Seating Capacity4
Curb Weight0
1510kg
Tires175/70-13
Volkswagen has built about 200 CityStromers A3 from 1995 to 1998.
Sold july 2008
