OwnerBruce Tucker
LocationThousand Oaks, California United States map
Email email image

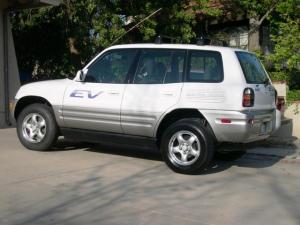

VehicleToyota RAV4-EV
(OEM Electric)
MotorToyota Permanent Magnet DC
50-kW, 67 HP 100-4600 RPM,
Drivetrainstock
Batteries24, 12.00 Volt, Nickel-Metal Hydride
System Voltage288 Volts
Charger
onboard, 240 VAC 30 Amp inductive (small paddle)
Heaterheat pump type with CFC-free air conditioning
Instrumentationsame as ICE RAV4. SOC meter, plus traction battery volt meter (analog)
Top Speed78 MPH (125 KPH)
advertised
Acceleration0 to 50 MPH in 12.8 seconds (at 100% SOC)
Range126 Miles (202 Kilometers)
advertised
Seating Capacity4 adults plus cargo/luggage
Curb Weight3,440 Pounds (1,563 Kilograms)
Tires195/80R16, 44 psi. low rolling resistance steel-belted radial
Additional FeaturesDeluxe AM/FM CD
* Dual airbag SRS
* Side impact door beams
* 6.5 hour recharge time
* Electro-hydraulic power steering
* 4-wheel ABS
* Regenerative braking
* Windshield & seat heaters, timed pre-cool cabin
* Power windows & door locks
* 827 lb payload (31.4cu. ft.)
* Rear window defogger
* 50/50 split fold down & up rear seats with pockets
* Digital clock, odometer with twin trip meters
* Passenger vanity mirror, 2 cup holders, carpeting
* Concealed spare tire (below, outside)
Purchased at lease end on eBay in March '05. We just plug it in and drive it.
