No messy oil leaks or fuel odorsSolar electric homePower settingsAvcon public charger adaptor
OwnerButch P.
Owner's Other EV2011 Nissan Leaf
LocationOrange County, California United States map
Email email image

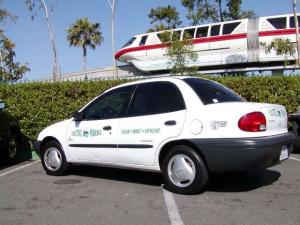

Vehicle1996 Geo Metro
(Solectria Force)
MotorAzure Dynamics/Solectria DAC 3-Phase AC
DAC System
Drivetrainsingle speed custom gear box (Solectria)
ControllerAzure Dynamics/Solectria AMC325
BatteriesDeka 8G27, 12.00 Volt, Lead-Acid, Gel
(Sonnenshine design) 57 Ah each
System Voltage156 Volts
ChargerAzure Dynamics/Solectria BC-3300
120/240 VAC input
HeaterElectric AC and Heat
DC/DC ConverterAzure Dynamics/Solectria
InstrumentationDigital Amp/Hour meter
Top Speed75 MPH (120 KPH)
Range50 Miles (80 Kilometers)
Watt Hours/MileDriving conservatively uses approximately 1 AH per mile. 45 AH use takes about 3 hours to recharge with 240 VAC.
Seating Capacity4 adults
Curb Weight2,580 Pounds (1,172 Kilograms)
175 pounds lighter than the original ICE
TiresGoodyear Invicta 155/80/13 max load 950 pounds x 4 + 3800 44 psi
Additional Featuresa) power brakes
b) AM/FM CD Stereo
c) air conditioning
d) battery warmers
e) interior pre-heater
f) front belly pan
g) Avcon adapter to use public conductive chargers
