Jason E.'s Schwinn Stingray Spoiler

Owner	Jason E.
Location	Tampa, Florida United States ^map
Vehicle	Schwinn Stringray Spoiler
Motor	MY 1016 unknown 24 Volt 14 Amp 250 Watt
Drivetrain	#25 scooter chain incorporated into bicycle chain drive
Controller	CT-302S9 24 Volt
Batteries	2, 12.00 Volt, 12 Ah
System Voltage	24 Volts
Charger	24 Volt charger
Heater	sol
Instrumentation	bike speedometer
Top Speed	21 MPH (33 KPH)
Acceleration	pedal up to top speed then motor........
Range	3 Miles ( 4 Kilometers) so far
Seating Capacity	1 adult
Tires	Big Boa 4" wide 20" rear and 24"x2" front
Conversion Time	about 2 weeks
Conversion Cost	under $100
Additional Features	battery trailer (kids stingray kick scooter) ape hanger bars
its not a rocket but it goes and looks cool........I'm looking into some lithium batteries and possible a more powerful motor. The bracket for the motor/sprocket assembly is removable so I can make an entirely new setup at a later date. My thanks goes out to Gabriel DeVault and his Easy Racers EZ-1 with its unique transmission. I made mine a bit differently but the idea was his love the site and all the evs.........keep up the good work guys you were all very inspiring and kept me motivated.

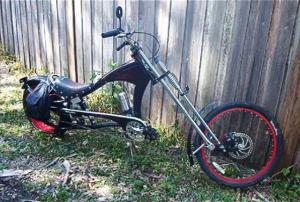

Schwinn Stingray Spoiler“Chopper”
