Dave Brandt's Kartco 675ST Go-Kart

Owner	Dave Brandt
Owner's Other EVs	1986 Ford Escort 1986 Pontiac Fiero 1970 GE E15 Elec-Trak
Location	Savannah, Georgia United States ^map
Web/Email	WebPage
Vehicle	Kartco 675ST go kart
Motor	Advanced DC Series Wound DC
Drivetrain	16:54 ratio on #40 chain
Controller	Curtis 1204-409 36-48 volt, 275 Amp
Batteries	4 Hawker SBS-J40, 12.00 Volt, Lead-Acid, AGM
System Voltage	48 Volts
Charger	Cliplight 12V 10A charger charged individually with a 12 Volt charger
Heater	The Georgia sun.
DC/DC Converter	None
Instrumentation	Volts, Amps
Top Speed	Not sure but when you're 2" off the ground, everything seems fast!
Acceleration	The band brake dislodged recently and rubbed against the side of the brake drum. There is so much torque that my daughter ground halfway through the steel and brake material band with the edge of the drum before we made her stop.
Range	Controller gets hot and cuts back after about 1/2 hour.
Seating Capacity	2 small kids or 1 adult with short legs!
Curb Weight	250 Pounds (113 Kilograms) approximately
Tires	10"
Conversion Time	2 years time, 1 month construction
Conversion Cost	about $1500 total
Additional Features	SW200 Contactor 20-60 Volt Voltmeter 400 Amp fuse 500 Amp shunt and ammeter Hawker G13EP 12 Volt battery.

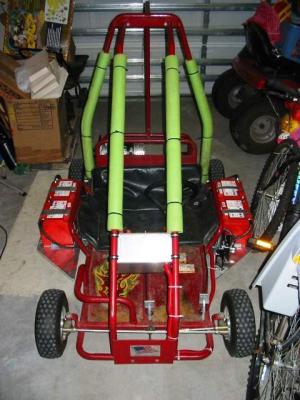

I built this for my daughters. The batteries, cart body, controller, and the material used for battery trays, motor baseplate, and control panel are all surplus, hence the name. Pictures show only the voltmeter installed, as the ammeter was being sent back to Westach for rebuild. I'll eventually add some lights. For now, the only 12V drain is the contactor. No time trials yet, but it seems plenty fast to the kids. Need to find a track to use it on since it doesn't have a suspension. Faster than the neighbor's kid's gas 4-wheeler! Controller heats up and cuts the amps back before the batteries give out.
