OwnerEllery Deuville
Owner's Other EVMassey 135 Tractor
LocationTruro, Nova Scotia Canada map
Email email image

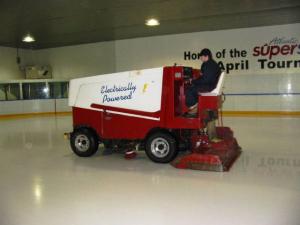

VehicleZamboni HB
Motor Compound Wound DC
72 Volt, used forklift , 3000 RPM
DrivetrainSundstrand Hydrostatic Transmission series 20
Controller
none needed only relay
Batteries12, 6.00 Volt,
deep cycle in series
System Voltage72 Volts
Charger
industrial 240 VAC, 12, 24, 36 and 72 Volt adjustable
Top SpeedZamboni speed ?
Rangeon our smaller rink three floods on one charge
Seating Capacity1 adult
Curb Weight6,000 Pounds (2,727 Kilograms)
Tiresnormal Zamboni tires
Conversion Time1 month
Conversion Cost$2,000
Very easy conversion, replaced VW gas engine with electric motor, needed to make adapter and coupling between gearbox and motor, used one of two water tanks for battery rack wired up relay and batteries and Zamboni worked the same as when it was gas. The gearbox drives the Hydrostatic transmission and the hydraulic pumps, speed is governed by the transmission, the electric motor just drives the gearbox. We charge after each flood for 45 minutes to keep batteries up. This machine replaced our electric tractor we used before (it is now the backup) I am now working on converting a model 400 Zamboni as it is a bit smaller and would fit our rink better
